General Specifications
Filter Size |
QTY Sulfursorb
Catalytic Carbon
|
Pressure Drop |
1-1/2" Inline Wolverine |
1.25 LB |
See
Chart |
2" Inline Wolverine |
1.25 LB |
See
Chart |
3" Inline Wolverine |
2 LB |
See
Chart |
4" Inline Wolverine |
2 LB |
See
Chart |

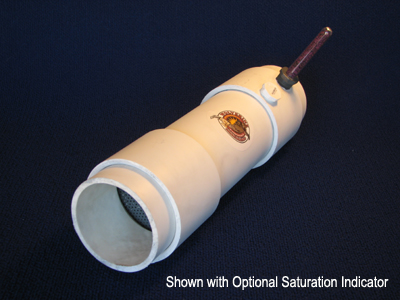

The Inline Wolverine® - Is a powerful septic and sewer vent Biofilter that Installs in the attic, “inline” of the existing roof vent pipe and fits all vent sizes ranging from 1 ½-6 inches. (How to Measure)
The Inline Wolverine® is primarily designed for use in extreme cold climates and comes complete with an insulated blanket to prevent frosting. However, it can be installed in any climate where septic or sewer vent odor exists and the roof vent filter needs to be hidden, such as may be the case of some Homeowner Association rules.
It is also equipped to accept installation of our unique, screw in Saturation Indicator. The saturation indicator simply changes color to let you know when the carbon in your Inline Wolverine® vent filter requires replacement.
Installation Instructions
The Inline Wolverine septic vent filter utilizes a specially formulated, Catalytic carbon called Sulfursorb that was specially developed for the removal of hydrogen sulfide, also known as H2S (the main source of sewer and septic gas odors), and other compounds from air streams. It is well suited for use in sewage treatment plants and pumping stations where these compounds are typically found. Sulfursorb gives you the high loading rates of impregnated carbons without the thermal risks associated with chemically treated carbons. Sulfursorb can also be washed with water to improve its long-term performance.
While Catalytic carbon costs more than standard or impregnated activated carbons, the end result is that it has the adsorbing capabilities of activated carbon without the shorter life associated with chemically coated carbons. This translates into better septic and sewer odor removal with the added benefit of longer carbon bed life.
(Sulfursorb Catalytic Activated Carbon is non-hazardous according to the definition for “health hazard” and “physical hazard” provided in the OSHA Hazard Communication Law (29 CFR Part 1910).
The InlineWolverine ® Vent filter is professionally manufactured and contains these features not offered by the competition:
- Unique “perforated disc” carbon containment system
- Double the amount of exclusive, Sulfursorb Catalyst Activated carbon **
- Equipped to accept our optional H2S Saturation indicator
**Carbon quantity claim based on 3” and 4” filter sizeTHE
INSTALLATION OF OUR INLINE WOLVERINE® REQUIRES THE REMOVAL OF A SECTION OF VENT PIPE. IT IS STRONGLY RECOMMENDED THAT YOU HIRE A PROFESSIONAL PLUMBER TO INSTALL THIS PRODUCT IF YOU HAVE A CAST IRON VENT PIPE.DO NOT ATTEMPT TO CUT A CAST IRON PIPE AS DAMAGE WILL RESULT. CUTTING OF CAST IRON PIPE REQUIRES SPECIAL TOOLS AND SKILLS AND MUST BE PERFORMED BY A PROFESSIONAL.
Every Inline Wolverine ® carries a 1-year warranty and a 100% 120-day money back guarantee! The Inline Wolverine® DESTROYS the odor or Your Money Back! |
