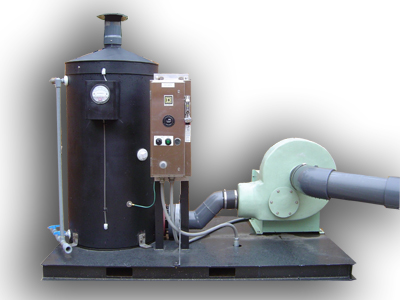

Industrial Vapor Phase Adsorber - Wolverine Brand HDPE-24 Price: $17,500.00 Scroll down for complete product details.
	Quantity in Basket: None Code: HDPE24
	Power Configuration (Volts/Phase/Hertz) : 115/1/60 230/1/60 208-230/3/60 460/3/60
	Quantity:
Wolverine Brand Vapor Phase Adsorber Model HDPE24 - For Air Flows From 0 – 150 CFM Our Model HDPE-24 Adsorbers are factory assembled in a complete package. All that is required is the electrical hook up and inlet piping to your odor source. Typical applications include Nuance odor and VOC control from tank vents, sumps, lift station wet wells, drum filling operations, sludge press room odor control.   Wolverine Brand HDPE-24 Industrial Vapor Phase Adsorber Specifications Operation and Owners Manual Industrial Vapor Phase Adsorber Brochure HDPE 24 Industrial Vapor Phase Adsorber Spec Sheet Adsorber Vessel: Made of HDPE or High Density Poly Ethylene for corrosion resistance and durability Height: Approx: 60 in (152 cm) Cad Drawing with specs Diameter: 24” 61 cm Carbon Capacity Regular Carbon: 265 lb (120kg) Caustic Carbon (Impregnated) : 330 lb (150kg) Catalytic Carbon: 265 (120kg) Inlet: 4 Inch Pipe Outlet: 4 Inch Pipe Adjustable inlet Dampener for air flow adjustment-standard Removable upper lid is mounted utilizing three ¼”-20 stainless steel bolts for easy carbon bed change out. Magnehelic Differential Pressure Gauge model 2005-standard More Information Condensation drain-standard Stainless steel carbon bed grounding rod-standard FRP Carbon support bed / air plenum for corrosion resistance-standard Equipped with mounting tabs to secure to skid or cement slab Vessels can be used as a stand alone adsorber or utilized in Series (Treatment Train) or in Parallel 1 Year Limited Warranty Cincinnati Fans Pressure Blower PB-9 For HDPE-24 1/3 HP. Cast aluminum, spark resistant, self-cleaning wheel Cast aluminum housing Motors are available in the following voltages/ratings V/Phase/HZ 115-230/1/60 208-230/3/60 460/3/60 Motor Ratings: TEFC (Totally Enclosed Fan Cooled) has external fan as an integral part of the motor, to provide cooling by blowing air around the outside frame of the motor. EXP: (Explosion-proof motors) - These motors meet Underwriters Laboratories (UL) and Canadian Standards Association standards for use in hazardous (explosive) locations, as indicated by the UL label affixed to the motor. (Locations are considered hazardous because the atmosphere does or may contain gas, vapor, or dust in explosive quantities.) View Cincinnati Fans: Spec Catalog Operating and Maintenance Manual Storage Manual Control Panels Housing is of FRP (Fiberglass Reinforced Plastic) construction. Controls manufactured by Moeller Electric. Available in the following configurations: (Voltage/Phase/HZ) 115/1/60 230/1/60 208-230/3/60 460/3/60 The following controls come as standard equipment on our control panels Lockable disconnect Run Light 3 position switch-(on/off/auto) Skids The HDPE-24 utilizes an epoxy coated steel 2x4, 12 gauge deck industrial skid measuring 30” X 60” Built in fork slits for easy mobility of the unit Price of skid includes an assembly fee of your HDPE-24 Industrial Vapor Phase Adsorber Rain Hat All adsorbers come with a rain cap/bug screen. Activated Carbons and Potassium Permanganate - All of our Industrial Vapor Phase Adsorbers are available with the following media: (Click on links below for more information): Use and Care of Activated Carbon Activated Carbon Principle of Operation • Coal Based Catalytic Activated Carbon-2 varieties * Best Carbons for H2S removal • Coal based Pelletized Activated Carbon- 3 varieties • Coal Based Impregnated Activated Carbon- 1 variety • Coconut Shell Activated Carbons- 2 varieties • Granular Potassium Permanganate- 2 varieties
